線切割加工工藝指南

來源:泰然健康網 時間:2024年12月07日 15:52

In the aerospace industry, precision is critical when crafting parts like turbine blades and aircraft structural components. Wire EDM allows manufacturers to create these complex parts with high accuracy and minimal material waste.

As such, this article will delve into the fundamentals of Wire EDM, including how it works, its key components, and tips for achieving optimal results. Additionally, we’ll explore how wire EDM compares to other EDM techniques, its benefits, limitations, and common applications across industries. Whether you’re new to EDM or looking to refine your skills, this guide will provide valuable insights.

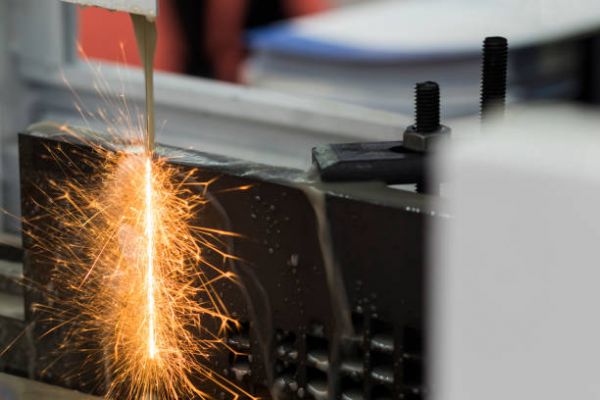

what is wire edm cutting

什么是 EDM?

電火花加工是一種非傳統加工工藝。它通過在工件和電極之間產生受控的火花放電來去除工件材料。在此工藝中,工件和電極浸入介電液體中,有助于控制和引導火花放電。電火花加工主要有兩種類型,包括線切割電火花加工和浸入式電火花加工(模具電火花加工)。

什么是線切割?

線切割電火花加工利用帶電的細線和介電流體,將金屬部件等材料切割成各種形狀。此外,這種方法在業內有各種名稱,包括電火花蝕刻、線切割、線切割等。鑒于該工藝通過熔化或蒸發材料產生細小的切屑和精確的切割線,它更適合導電部件。

線切割是如何工作的?

線切割電火花加工工藝采用簡單的機制。線切割電火花加工使用電解加工原理來切割金屬工件上的復雜形狀。在此過程中,細長的帶電銅線或黃銅線用作切割工具。
此外,通過控制導線與工件之間的電荷差,產生火花放電,火花能量在極小的一點上以熱量的形式耗散,溫度高達12000°C,使導線和工件同時汽化,從而導致工件局部熔化和蒸發,實現高精度的材料去除,同時保證線切割機床沿預設的路徑精確移動。

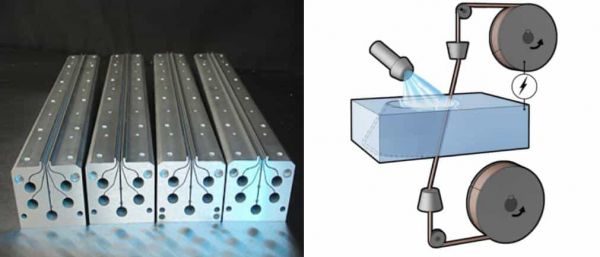

wire edm cutting

線切割機床的部件


線切割機床由多個部件組成,這些部件協同工作,將材料塑造成特定形狀。一些主要的常見部件如下:

wire edm parts

1. 介電流體系統
介電流體系統通常使用去離子水,作為冷卻劑去除金屬顆粒。它還充當導線和工件之間的絕緣體,以控制放電。
2. 電源
它提供受控電壓(范圍從 100V 到 300V),以產生加工所需的火花。它還可以調節放電的功率強度和持續時間。

3. 工作槽
工作槽內裝有浸沒在介電液中的電極絲和工件。此外,它還有助于有效管理介電液,并為切割過程提供受控環境。

4. 沖洗系統
它包括泵和噴嘴,用于將介電流體引導至切割區域。此外,它還通過去除熱量和碎屑來提高效率。

5. 過濾系統
介電系統內設有過濾器,可去除金屬顆粒,凈化流體。此外,它還能確保切割過程中的有效絕緣和冷卻。

6. 金屬絲
電極絲一般由黃銅、分層銅、鍍鋅絲等制成,直徑為0.05至0.25毫米。通常,它還通過產生放電來充當切割工具。

黃銅:具有良好的導電性和耐用性。 分層銅:結合了銅的高電導性與賤金屬的結構強度。 鍍鋅電線:具有耐腐蝕性能,提高電線的使用壽命和在各種環境下的性能。 擴散退火絲:產生更加均勻和穩定的材料成分。

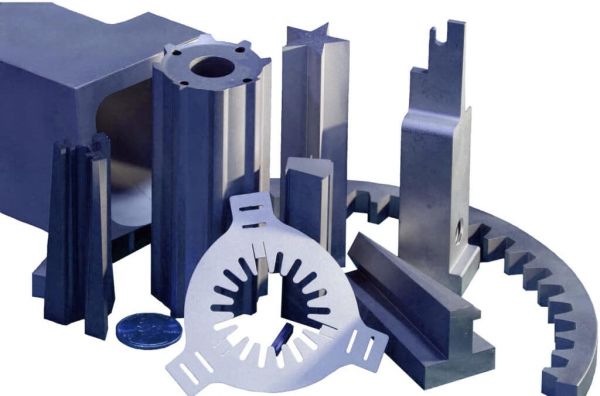

可用于線切割的材料

線切割可以在各種導電材料上形成復雜的形狀和圖案。以下是線切割中使用的一些常見材料。
金屬The wire EDM cutting process relies on the controlled erosion of the workpiece material by electrical discharges. Therefore, conductive metals are the primary materials employed in this process.

鋼材:碳鋼、合金鋼、不銹鋼 銅和銅合金:黃銅、青銅 鈦及鈦合金 鋁和鋁合金 鎳及鎳基合金 鎢和碳化鎢

非金屬:
Although wire EDM primarily processes metallic materials, this technology can also process certain non-metallic conductive materials.

石墨 硅 導電陶瓷 硬質塑料和復合材料

線切割技巧和竅門

以下是優化線切割性能的一些有用技巧和竅門。
1.導線選擇:
選擇最佳線徑和材質
2.參數優化:
仔細調整電壓、電流、脈沖、沖洗
3. 導線張力及引導:
保持適當?shù)木€張力以防止振動
4.工件夾緊及定位:
牢固夾緊以防止移動,并盡量減少設置和穿線
5. 沖洗和清除雜物:
確保有效沖洗以清除碎片
6.維護和監控:
定期檢查和維護機器,監測電線狀況,并在磨損前更換

Types of EDM Machining

線切割與其他電火花加工技術的主要區別在于工件的幾何形狀、材料適用性、切割速度以及可達到的精度和復雜程度。

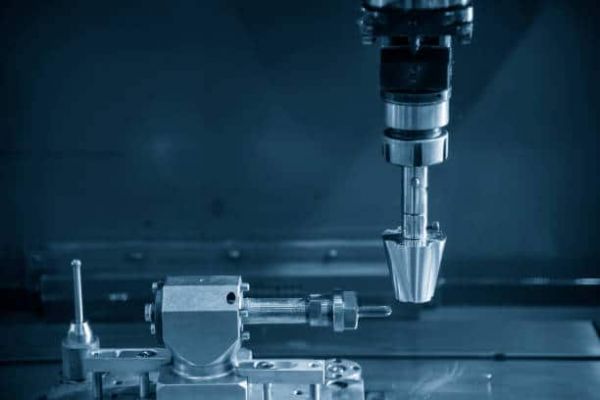

wire edmThe 4-axis EDM machine operation in the light blue scene. The hi-technology mold and die manufacturing process by sinker EDM machine . Wire EDM (WEDM)
As we mentioned before, wire EDM uses a thin, electrically charged wire to cut through conductive materials with high precision. The wire moves along a programmed path, eroding the material in a controlled manner. This process excels in creating complex shapes and intricate designs, making it ideal for industries like aerospace, automotive, and 醫療裝置 manufacturing. In particular, it’s effective for cutting thin or delicate parts with tight tolerances. Sinker EDM (Die Sinker EDM)
Sinker EDM, on the other hand, utilizes a shaped electrode that is submerged into the workpiece to erode material and form precise cavities or contours. This method is commonly used for creating molds, dies, and tooling with complex 3D shapes. Unlike Wire EDM, the electrode is shaped to match the exact contours needed, allowing for high-precision results in industries such as die casting, 注塑成型, and tool making. Fast Hole EDM
Fast hole EDM focuses on creating deep, small-diameter holes in hard materials. It uses a hollow electrode to continuously flush away debris during the machining process. Typically, this process is used in applications like drilling cooling holes in turbine blades in the aerospace industry or producing tiny holes for medical devices and electronics. It offers precision for high-aspect-ratio holes where traditional drilling methods may not be effective. 微細電火花加工
Micro-EDM creates extremely small and intricate parts with high precision. It employs the same principle of electrical discharges but at a much smaller scale, allowing for the creation of micro-sized features, such as tiny holes, fine grooves, and intricate 3D structures. Typically, micro-EDM is employed in industries where miniature components are required. It is especially valuable in applications where traditional machining methods cannot achieve the desired precision or where material hardness presents a challenge.

In summary, the key difference between these EDM types lies in their specific applications and material removal methods. While wire EDM is best suited for cutting intricate 2D and 3D shapes with high precision, sinker EDM excels in creating detailed cavities and 3D contours using a shaped electrode. Meanwhile, fast-hole EDM specializes in drilling deep, precise holes in hard materials, often for aerospace and medical applications. On the other hand, micro-EDM is suitable for producing extremely small, high-precision components for industries like microelectronics and medical devices.

線切割的優點和局限性


線切割技術通過其專業的加工方法帶來了許多好處。然而,該工藝也存在一些局限性。

好處:

精確:它可以實現極其精確的公差,通常在±0.01毫米以內。 多功能性:此外,它還可以處理從金屬到復合材料的各種導電材料。 表面處理:電火花線切割的非接觸特性可實現光滑、無毛刺的表面光潔度,通常在 Ra 0.2-0.8μm 范圍內。 環保:與一些使用切削液或潤滑劑的傳統加工技術不同,EDM 更加環保。

限制:

成本:定期更換電極絲和介電液會增加運營成本。 材料兼容性:EDM 僅適用于導電材料,這限制了它在某些材料上的應用。 去除率:線切割的材料去除率相對較慢,這會影響生產率。 斷線:切割過程中可能會發生斷線,導致停機和潛在的零件損壞。

線切割的應用


事實證明,線切割技術因其令人難以置信的效率和多功能性而在各個行業中都得到了廣泛的應用。讓我們來探討一下一些關鍵的應用:

醫療行業中的骨科植入物醫療設備
電火花加工機在醫療制造中起著至關重要的作用。它提供了生產復雜器械所需的精度,從 牙科 以 骨科植入物。 此外,它還能滿足嚴格的要求,保證這些儀器在人體內的兼容性。 航天工業
它能夠制造出形狀復雜的關鍵部件,例如起落架和飛機發動機。此外,航空航天制造固有的精度和復雜性要求制造技術能夠滿足這些嚴格的標準。 汽車行業在汽車行業,線切割電火花加工工藝特別適合制造定制孔和腔。它還涉及各種汽車零部件,例如車門、保險杠、儀表板等。 電子行業
制造商通常采用該技術生產傳感器和電路的微電子元件。此外,它還有助于制造集成電路封裝中使用的連接器引腳和引線框架。

結論

線切割加工是需要高精度和精細細節的領域不可或缺的一部分。它能夠適應復雜的形狀和精細切割的質量,這讓它在先進的制造環境中具有無價的價值,尤其是在傳統切割方法不足的地方。
贖金,您可以依靠其豐富的專業經驗、使用高質量的材料和 數控加工技術以及嚴格的質量控制流程,以確保生產的零件符合行業標準。如果您對線切割有任何疑問,請隨時聯系我們的專家或 請求即時報價.
