摘要: 羅勒精油(Basil essential oil，BEO)是一種綠色、安全的抑菌劑。然而，BEO的強揮發性限制了其在抑菌傷口敷料領域的應用。本文采用納米沉淀法制備了納米羅勒精油(BEO@Zein(玉米醇溶蛋白))，然后將其負載在以聚乙烯吡咯烷酮(PVP)和聚乙烯醇(PVA)為基材的水凝膠上，通過凍融循環形成了BEO@Zein/PVP-PVA水凝膠傷口敷料，對BEO@Zein和水凝膠的微觀形貌和結構進行表征，對水凝膠的抑菌性能、力學性能、溶脹保濕性、降解性、血液相容性進行研究。結果表明：BEO@Zein形成了以BEO為核、Zein為殼的納米球形結構(平均粒徑為56.3 nm)，顯著降低了BEO揮發性。BEO@Zein/PVP-PVA水凝膠可以緩慢釋放BEO，從而表現出優異的緩釋抑菌性能。因此，BEO@Zein/PVP-PVA水凝膠具有良好的抑菌持久性(超過72 h)。此外，水凝膠還表現出顯著的抗細菌生物膜性能。BEO@Zein/PVP-PVA水凝膠的力學性能、溶脹保濕性、降解性和血液相容性均表現良好。研究表明：BEO@Zein/PVP-PVA水凝膠是一種良好的傷口敷料材料。

Abstract: Basil essential oil (BEO) is a green and safe antibacterial agent. However, the high volatility of BEO has limited its application in the field of antibacterial wound dressings. BEO nanoparticles (BEO@Zein) were prepared by nanoprecipitation method. They were then loaded on the hydrogel based on polyvinylpyrrolidone (PVP) and polyvinyl alcohol (PVA) to form BEO@Zein/PVP-PVA hydrogel wound dressing by freeze-thaw cycle. The microscopic morphology and structure of BEO@Zein and hydrogel were characterized. The antibacterial property, mechanical property, swelling and moisturizing, degradability and blood compatibility of hydrogel were studied. The results show that BEO@Zein forms a nano-spherical structure with BEO as core and Zein as shell (mean particle size is 56.3 nm), which significantly reduces the volatility of BEO. BEO@Zein/PVP-PVA hydrogel can release BEO slowly, thus exhibiting excellent slow-release antibacterial property. Therefore, BEO@Zein/PVP-PVA hydrogel has excellent antimicrobial persistence (over 72 h). In addition, the hydrogel shows remarkable antibacterial biofilm property. BEO@Zein/PVP-PVA hydrogel has good mechanical property, swelling and moisturizing, degradability, and blood compatibility. Studies have shown that BEO@Zein/PVP-PVA hydrogel can be used as a good wound dressing material.

圖  1   羅勒精油(BEO)@玉米醇溶蛋白(Zein)/聚乙烯吡咯烷酮(PVP)-聚乙烯醇(PVA)水凝膠的制備示意圖

V—Volum

Figure  1.   Schematic diagram of basil essential oil (BEO)@Zein/polyvinylpyrrolidone (PVP)-polyvinyl alcohol (PVA) hydrogel preparation

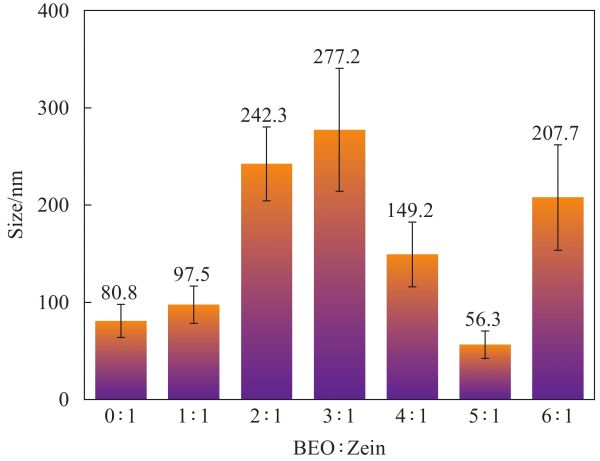

圖  2   納米Zein和不同質量比BEO@Zein納米粒子的平均粒徑

Figure  2.   Average particle size of Zein nanoparticles and BEO@Zein nanoparticles with different mass ratios

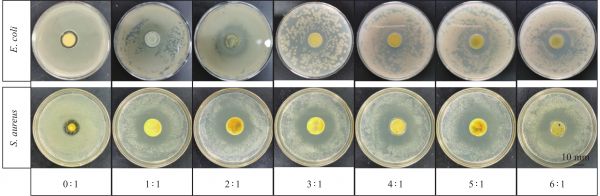

圖  3   納米Zein和不同質量比的BEO@Zein納米粒子懸浮液對E. coli和S. aureus的抑菌性

Figure  3.   Bacteriostasis of Zein nanoparticle suspensions and BEO@Zein nanoparticle suspensions with different mass ratios against E. coli and S. aureus

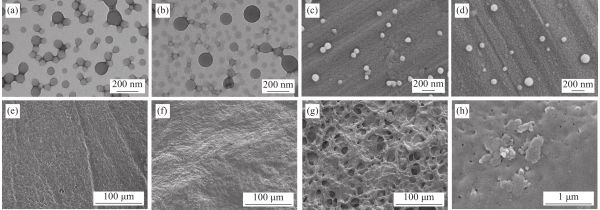

圖  4   納米Zein的TEM (a)和SEM圖像；BEO@Zein的TEM (b)和SEM圖像；PVA水凝膠、PVP-PVA水凝膠、BEO@Zein/PVP-PVA水凝膠((g), (h))的SEM圖像

Figure  4.   SEM (a) and TEM (c) images of Zein nanoparticles; SEM (b) and TEM (d) images of BEO@Zein nanoparticles; SEM images of PVA hydrogel (e), PVP-PVA hydrogel (f) and BEO@Zein/PVP-PVA hydrogel ((g), (h))

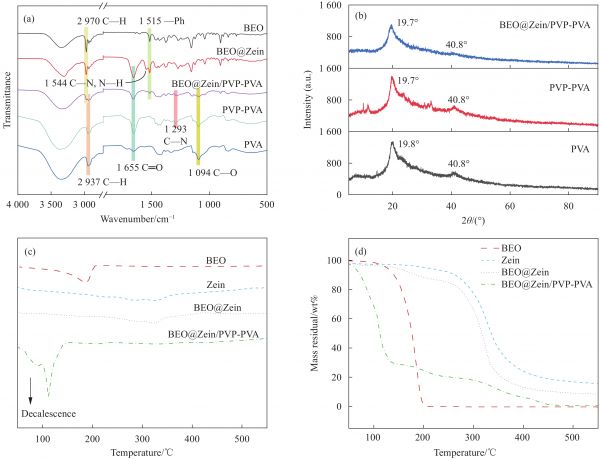

圖  5   水凝膠的FTIR圖譜、XRD圖譜 、DSC曲線和TG曲線

Figure  5.   FTIR spectra (a), XRD patterns (b), DSC curves (c) and TG curves (d) of hydrogel

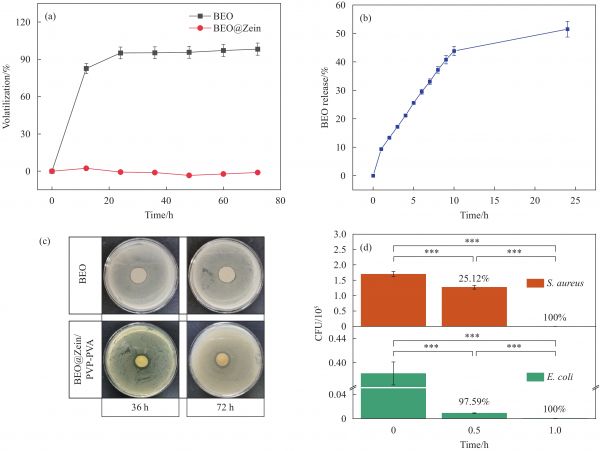

圖  6   (a) BEO和BEO@Zein在37℃空氣中的揮發率；(b) BEO@Zein/PVP-PVA水凝膠在磷酸鹽緩沖溶液(PBS)中對BEO的釋放；(c) BEO (以濾紙為載體)和BEO@Zein/PVP-PVA水凝膠在37℃空氣中揮發36 h和72 h后對E. coli的抑菌性；(d) BEO@Zein/PVP-PVA水凝膠在模擬體液中釋放BEO對E. coli和S. aureus的抑菌性

***—Significant difference (p<0.001, n =3); CFU—Colony forming units

Figure  6.   (a) Volatilization ratio of BEO and BEO@Zein in 37℃ air; (b) BEO release of BEO@Zein/PVP-PVA hydrogel in phosphate buffer saline (PBS); (c) Antibacterial activity of BEO (filter paper as carrier) and BEO@Zein/PVP-PVA hydrogel on E. coli after volatilization in 37℃ air for 36 h and 72 h; (d) Bacteriostasis of BEO@Zein/PVP-PVA hydrogel releasing BEO in simulated body fluids on E. coli and S. aureus

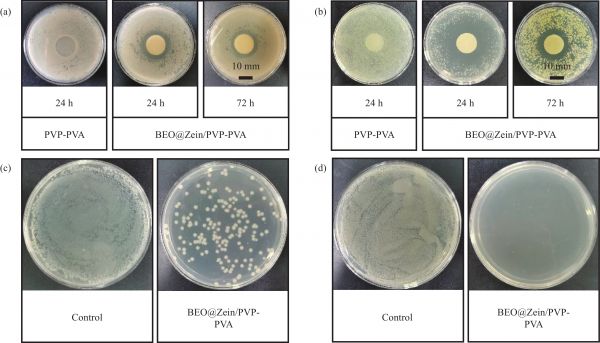

圖  7   PVP-PVA水凝膠和BEO@Zein/PVP-PVA水凝膠對E. coli (a)和S. aureus (b)持續抑菌24 h和72 h后的抑菌性；BEO@Zein/PVP-PVA水凝膠抗E. coli生物膜和S. aureus生物膜性能

Figure  7.   Antibacterial activity of PVP-PVA hydrogel and BEO@Zein/PVP-PVA hydrogel against E. coli (a) and S. aureus (b) after 24 h and 72 h of sustained bacteriostasis; BEO@Zein/PVP-PVA hydrogel against E. coli biofilms (c) and S. aureus biofilms (d)

圖  8   BEO@Zein/PVP-PVA水凝膠的緩釋抑菌機制示意圖

Figure  8.   Schematic diagram of slow-release bacteriostatic mechanism of BEO@Zein/PVP-PVA hydrogel

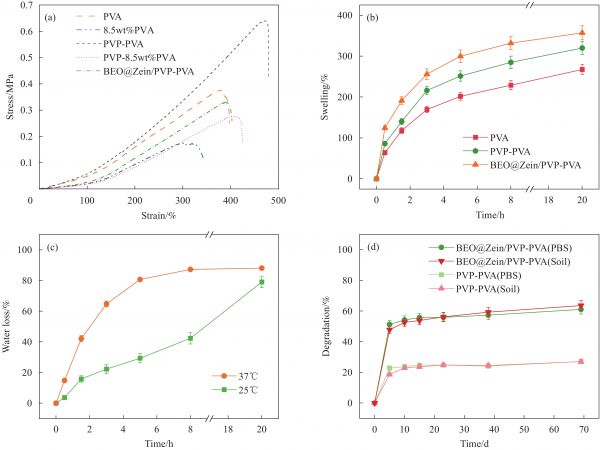

圖  9   (a) PVA水凝膠、8.5wt%PVA水凝膠、PVP-PVA水凝膠、PVP-8.5wt%PVA水凝膠、BEO@Zein/PVP-PVA水凝膠的應力-應變曲線；(b) PVA水凝膠、PVP-PVA水凝膠、BEO@Zein/PVP-PVA水凝膠在PBS溶液中的溶脹率曲線；(c) BEO@Zein/PVP-PVA水凝膠在37℃和25℃下的失水率曲線；(d) PVP-PVA水凝膠和BEO@Zein/PVP-PVA水凝膠在土壤和PBS溶液中的降解率曲線

Figure  9.   (a) Stress-strain curves of PVA hydrogel, 8.5wt%PVA hydrogel, PVP-PVA hydrogel, PVP-8.5wt%PVA hydrogel, and BEO@Zein/PVP-PVA hydrogel; (b) Swelling ratio curves of PVA hydrogel, PVP-PVA hydrogel, and BEO@Zein/PVP-PVA hydrogel in PBS solution; (c) Water loss ratio curves of BEO@Zein/PVP-PVA hydrogel at 37℃ and 25℃; (d) Degradation ratio curves of PVP-PVA hydrogel and BEO@Zein/PVP-PVA hydrogel in soil and PBS solution

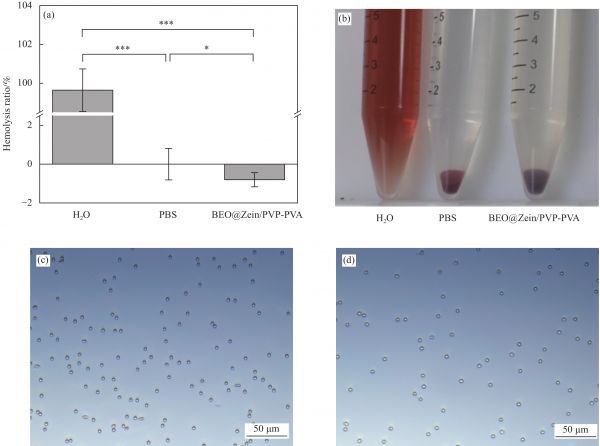

圖  10   水、PBS和BEO@Zein/PVP-PVA水凝膠處理的紅細胞的溶血率和圖像；PBS (c)和BEO@Zein/PVP-PVA水凝膠處理的紅細胞的光學圖像

*—Significant difference (** p<0.01, *** p<0.001, n = 3)

Figure  10.   Hemolysis ratio (a) and pictures (b) of red blood cells treated with water, PBS and BEO@Zein/PVP-PVA hydrogel; Optical images of red blood cells treated with PBS (c) and BEO@Zein/PVP-PVA hydrogel (d)

XIONG S, LI R, YE S, et al. Vanillin enhances the antibacterial and antioxidant properties of polyvinyl alcohol-chitosan hydrogel dressings[J]. International Journal of Biological Macromolecules,2022,220:109-116. DOI: 10.1016/j.ijbiomac.2022.08.052

ZHANG Y, JIANG M, ZHANG Y, et al. Novel lignin-chitosan-PVA composite hydrogel for wound dressing[J]. Materials Science and Engineering: C,2019,104:110002. DOI: 10.1016/j.msec.2019.110002

TAO G, WANG Y, CAI R, et al. Design and performance of sericin/poly(vinyl alcohol) hydrogel as a drug delivery carrier for potential wound dressing application[J]. Materials Science and Engineering: C,2019,101:341-351.

BAKADIA B M, ZHONG A, LI X, et al. Biodegradable and injectable poly(vinyl alcohol) microspheres in silk sericin-based hydrogel for the controlled release of antimicrobials: Application to deep full-thickness burn wound healing[J]. Advanced Composites and Hybrid Materials,2022,5(4):2847-2872. DOI: 10.1007/s42114-022-00467-6

KALANTARI K, MOSTAFAVI E, SALEH B, et al. Chitosan/PVA hydrogels incorporated with green synthesized cerium oxide nanoparticles for wound healing applications[J]. European Polymer Journal,2020,134:109853. DOI: 10.1016/j.eurpolymj.2020.109853

SONG S, LIU Z, ABUBAKER M A, et al. Antibacterial polyvinyl alcohol/bacterial cellulose/nano-silver hydrogels that effectively promote wound healing[J]. Materials Science and Engineering: C,2021,126:112171.

WANG Z, WANG Y, PENG X, et al. Photocatalytic antibacterial agent incorporated double-network hydrogel for wound healing[J]. Colloids and Surfaces B: Biointerfaces,2019,180:237-244. DOI: 10.1016/j.colsurfb.2019.04.043

DEDE S, SADAK O, DIDIN M, et al. Basil oil-loaded electrospun biofibers: Edible food packaging material[J]. Journal of Food Engineering,2022,319:110914. DOI: 10.1016/j.jfoodeng.2021.110914

SUN R, SONG G S, ZHANG H, et al. Effect of basil essential oil and beeswax incorporation on the physical, structural, and antibacterial properties of chitosan emulsion based coating for eggs preservation[J]. LWT,2021,150:112020. DOI: 10.1016/j.lwt.2021.112020

MARQUES C S, CARVALHO S G, BERTOLI L D, et al. beta-cyclodextrin inclusion complexes with essential oils: Obtention, characterization, antimicrobial activity and potential application for food preservative sachets[J]. Food Research International,2019,119:499-509. DOI: 10.1016/j.foodres.2019.01.016

LI C Z, BAI M, CHEN X C, et al. Controlled release and antibacterial activity of nanofibers loaded with basil essential oil-encapsulated cationic liposomes against Listeria monocytogenes[J]. Food Bioscience,2022,46:101578. DOI: 10.1016/j.fbio.2022.101578

WEISANY W, YOUSEFI S, TAHIR N A, et al. Targeted delivery and controlled released of essential oils using nanoencapsulation: A review[J]. Advances in Colloid and Interface Science,2022,303:102655. DOI: 10.1016/j.cis.2022.102655

LAMMARI N, LOUAER O, MENIAI A H, et al. Encapsulation of essential oils via nanoprecipitation process: Overview, progress, challenges and prospects[J]. Pharmaceutics,2020,12(5):431. DOI: 10.3390/pharmaceutics12050431

GHORBANI M, HASSANI N, RAEISI M. Development of gelatin thin film reinforced by modified gellan gum and naringenin-loaded Zein nanoparticle as a wound dressing[J]. Macromolecular Research,2022,30(6):397-405. DOI: 10.1007/s13233-022-0049-1

SANKARGANESH P, PARTHASARATHY V, KUMAR A G, et al. Preparation of cellulose-PVA blended hydrogels for wound healing applications with controlled release of the antibacterial drug: An in vitro anticancer activity[J]. Biomass Conversion and Biorefinery, 2022, 4: 1-11.

YU Y, YANG Z, REN S, et al. Multifunctional hydrogel based on ionic liquid with antibacterial performance[J]. Journal of Molecular Liquids,2020,299:112185. DOI: 10.1016/j.molliq.2019.112185

QING X, HE G, LIU Z, et al. Preparation and properties of polyvinyl alcohol/N-succinyl chitosan/lincomycin composite antibacterial hydrogels for wound dressing[J]. Carbohydrate Polymers,2021,261:117875. DOI: 10.1016/j.carbpol.2021.117875

YU H, KIM J S, KIM D W, et al. Novel composite double-layered dressing with improved mechanical properties and wound recovery for thermosensitive drug, lactobacillus brevis[J]. Composites Part B: Engineering,2021,225:109276. DOI: 10.1016/j.compositesb.2021.109276

GUO Y Q, AN X L, FAN Z J. Aramid nanofibers reinforced polyvinyl alcohol/tannic acid hydrogel with improved mechanical and antibacterial properties for potential application as wound dressing[J]. Journal of the Mechanical Behavior of Biomedical Materials,2021,118:104452. DOI: 10.1016/j.jmbbm.2021.104452

THONGSUKSAENGCHAROEN S, SAMOSORN S, SONGSRIROTE K. A facile synthesis of self-catalytic hydrogel films and their application as a wound dressing material coupled with natural active compounds[J]. ACS Omega,2020,5(40):25973-25983. DOI: 10.1021/acsomega.0c03414

GHEORGHITA D, GROSU E, ROBU A, et al. Essential oils as antimicrobial active substances in wound dressings[J]. Materials,2022,15(19):6923. DOI: 10.3390/ma15196923

TEODORESCU M, BERCEA M, MORARIU S. Biomaterials of PVA and PVP in medical and pharmaceutical applications: Perspectives and challenges[J]. Biotechnology Advances,2019,37(1):109-131. DOI: 10.1016/j.biotechadv.2018.11.008

ZHANG H, TANG N, YU X, et al. Natural glycyrrhizic acid-tailored hydrogel with in-situ gradient reduction of AgNPs layer as high-performance, multi-functional, sustainable flexible sensors[J]. Chemical Engineering Journal,2022,430:132779. DOI: 10.1016/j.cej.2021.132779

HE Q, ZHANG L G, SONG L Y, et al. Inactivation of Staphylococcus aureus using ultrasound in combination with thyme essential oil nanoemulsions and its synergistic mechanism[J]. LWT,2021,147:111574. DOI: 10.1016/j.lwt.2021.111574

SHAREEF S N, MADHURI W. Structural, morphological, dielectric and tensile properties of BaTiO3-doped PVA/PVP polymer blend nanocomposites[J]. Polymer Bulletin,2022,80(3):2389-2412.

EL-KADER M F H A, ELABBASY M T, ADEBOYE A A, et al. Nanocomposite of PVA/PVP blend incorporated by copper oxide nanoparticles via nanosecond laser ablation for antibacterial activity enhancement[J]. Polymer Bulletin,2021,79(11):9779-9795.

目的

羅勒精油(Basil essential oil，BEO)是一種綠色、安全的抑菌劑。然而，BEO的強揮發性導致它不能在較長時間內維持抑菌活性，從而限制了其在抑菌傷口敷料領域的應用。本文采用納米沉淀法在乙醇水溶液中使用兩親性玉米醇溶蛋白(Zein)制備了納米羅勒精油(BEO@Zein)，然后將其負載在以聚乙烯吡咯烷酮(PVP)和聚乙烯醇(PVA)為基材的水凝膠上，通過凍融循環形成了BEO@Zein/PVP-PVA水凝膠傷口敷料，并對BEO@Zein和BEO@Zein/PVP-PVA水凝膠進行表征分析和性能研究。

方法

首先通過掃描電鏡(SEM)、透射電鏡(TEM)、紅外(FTIR)、差式掃描量熱法(DSC)、熱重(TG)和X射線衍射(XRD)對BEO@Zein和BEO@Zein/PVP-PVA水凝膠進行表征分析。然后以大腸桿菌()和金黃色葡萄球菌()為典型，通過抑菌圈和平板計數法探究BEO@Zein/PVP-PVA水凝膠對BEO的釋放對其抑菌性能的影響。使用萬能試驗機進行拉伸實驗探究BEO@Zein/PVP-PVA水凝膠的力學性能。根據質量變化探究BEO@Zein/PVP-PVA水凝膠的溶脹保濕性以及在土壤和PBS溶液中的降解性。用BEO@Zein/PVP-PVA水凝膠處理紅細胞，根據溶血率和細胞形態來評價其血液相容性。

結果

SEM和TEM表明，BEO@Zein形成了以BEO為核、Zein為殼的納米結構，其形貌為規則的球形，當BEO和Zein的質量比為5:1時，平均粒徑相對較小(56.3nm)。抑菌實驗表明，隨著B(niǎo)EO的比例增大，BEO@Zein的抑菌性能也有所提高。SEM還表明，BEO@Zein/PVP-PVA水凝膠具有多孔結構，其表面分布了少量BEO@Zein。FTIR證明了BEO@Zein/PVP-PVA水凝膠的組成以及氫鍵的存在。XRD表明，BEO@Zein/PVP-PVA水凝膠中形成了PVA結晶的網絡結構，且PVA含量越高，PVA結晶性越好，水凝膠交聯度就越高。DSC和TG表明，BEO@Zein的核殼結構和BEO@Zein/PVP-PVA水凝膠網絡都有利于提高BEO的熱穩定性。在揮發性實驗中，12h后BEO的揮發率為83%，BEO@Zein的揮發率僅為2%；在模擬體液中，BEO@Zein/PVP-PVA水凝膠中的BEO前10h內呈現近乎線性的釋放規律，釋放率最高達到44%，與沒有氫鍵作用的BEO相比，該水凝膠體現出對BEO緩慢釋放的特性，也因此使得水凝膠具有了持續抑菌的性能。抑菌實驗表明，BEO在揮發36h后失去抑菌性，但同一時間下BEO@Zein/PVP-PVA水凝膠仍具有抑菌性，且揮發72h后還有明顯的抑菌圈；在模擬體液中BEO@Zein/PVP-PVA水凝膠0.5h后對和的抑制率分別為97.59%和25.12%，1h后抑制率均為100%，證明水凝膠具有緩釋抑菌性能，且抑菌實驗表明持續抑菌時間超過72h。BEO@Zein/PVP-PVA水凝膠還可以抑制和形成的生物膜，對生物膜的抑制率可以幾近達到100%。此外，BEO@Zein/PVP-PVA水凝膠對的抑菌效果比好，這可能是因?yàn)锽EO中丁香酚等疏水化合物能與細胞膜直接相互作用，而親水細胞膜會阻礙疏水化合物的滲透，因此對BEO的抵抗力更強。拉伸應力應變曲線表明，在PVA水凝膠中引入PVP可以改善其力學性能，且水凝膠中PVA含量越高，PVA結晶性越好，力學性能越強，BEO@Zein/PVP-PVA水凝膠的拉伸強度和斷裂伸長率分別為0.33MPa和402.52%。溶脹率曲線表明，PVA水凝膠、PVP-PVA水凝膠和BEO@Zein/PVP-PVA水凝膠對PBS溶液的吸收在8h后基本飽和，溶脹率分別達到229%、285%和332%以上。失水率曲線表明，BEO@Zein/PVP-PVA水凝膠在25℃和37℃下8h內的失水率分別達到40%和85%以上。在相同時間內，BEO@Zein/PVP-PVA水凝膠的溶脹率要遠高于失水率，因此該水凝膠可以通過吸收傷口滲出液維持傷口環境濕潤，從而具有溶脹保濕性。降解率曲線表明，PVP-PVA水凝膠和BEO@Zein/PVP-PVA水凝膠的降解率在10天后分別為20%和50%，這是因?yàn)锽EO@Zein/PVP-PVA水凝膠的PVA含量低于PVP-PVA水凝膠，水凝膠中PVA含量越低，PVA結晶性越差，水凝膠交聯度越小，所以降解性越好。BEO@Zein/PVP-PVA水凝膠處理的紅細胞的溶血率基本為0，光學圖像也顯示，細胞形態沒有發生明顯轉變，表明該水凝膠具有血液相容性。

結論

BEO@Zein能提高BEO的熱穩定性，并降低其揮發性。BEO@Zein/PVP-PVA水凝膠傷口敷料可以緩慢釋放BEO，從而表新出緩釋抑菌性能。此外，水凝膠還表現出顯著的抗細菌生物膜性能，對生物膜的抑制率幾近達到100%。BEO@Zein/PVP-PVA水凝膠以PVA結晶和氫鍵交聯，具有較好的力學性能，同時多孔結構使其具有較強的溶脹保濕性，此外在土壤和PBS中具有降解性。BEO@Zein/PVP-PVA水凝膠傷口敷料處理過的紅細胞的溶血率基本為0，細胞也沒有發生形態學轉變，具有血液相容性。總之，BEO@Zein/PVP-PVA水凝膠是一種有潛力的傷口敷料材料。
