Pod的健康檢查機制

來源:泰然健康網 時間:2024年12月29日 15:41

1 探針簡介

對線上業務來說,保證服務的正常穩定是重中之重,對故障服務的及時處理避免影響業務以及快速恢復一直是開發運維的難點。Kubernetes提供了健康檢查服務,對于檢測到故障服務會被及時自動下線,以及通過重啟服務的方式使服務自動恢復。

2 使用Liveness及Readness探針

Liveness探針:主要用于判斷Container是否處于運行狀態,比如當服務crash或者死鎖等情況發生時,kubelet會kill掉Container,然后根據其設置的restart policy進行相應操作(可能會在本機重新啟動Container,或者因為設置Kubernetes QoS,本機沒有資源情況下會被分發的其他機器上重新啟動)

Readness探針:主要用于判斷服務是否已經正常工作,如果服務沒有加載完成或工作異常,服務所在的Pod的IP地址會從服務的Endpoints中被移除,也就是說,當服務沒有ready時,會將其從服務的load balancer中移除,不會再接受或響應任何請求。

2.1 服務可用性和自動恢復

如果服務的健康檢查(readiness)失敗,故障的服務實例從service endpoint中下線,外部請求將不會再轉發到該服務上,一定程度上保證正在提供的服務的正確性,如果服務自我恢復了(比如網絡問題),會自動重新加入service endpoint對外提供服務。

另外,如果設置了Container(liveness)的探針,對故障服務的Container(liveness)的探針同樣會失敗,container會被kill掉,并根據原設置的container重啟策略,系統傾向于在其原所在的機器上重啟該container、或其他機器重新創建一個pod;

2.2 建議

1 . 對全部服務同時設置服務(readiness)和Container(liveness)的健康檢查。

2 . 通過TCP對端口檢查(TCPSocketAction),僅適用于端口已關閉或進程停止情況。因為即使服務異常,只要端口是打開狀態,健康檢查仍然是通過的。

3 . 基于第二點,一般建議用ExecAction自定義健康檢查邏輯,或采用HTTP Get請求進行檢(HTTPGetAction)

4 . 無論采用哪種類型的探針,一般建議設置檢查服務(readiness)的時間短于檢查Container(liveness)的時間,也可以將檢查服務(readiness)的探針與Container(liveness)的探針設置為一致。目的是故障服務先下線,如果過一段時間還無法自動恢復,那么根據重啟策略,重啟該Container、或其他機器重新創建一個Pod恢復故障服務。

2.3 example liveness.yaml

容器會創建一個文件/tmp/healthy,30秒后刪除;探針5秒會檢查一次,檢查方式為cat /tmp/healthy文件是否存在,檢查到容易有問題,探測失敗3次,則重建容器

[root@k8s-master-10 Liveness]# cat liveness.yaml apiVersion: v1 kind: Pod metadata: labels: test: liveness name: liveness-exec-changjian spec: containers: - name: liveness image: busybox args: - /bin/sh - -c - touch /tmp/healthy; sleep 30; rm -rf /tmp/healthy; sleep 600 livenessProbe: exec: command: - cat - /tmp/healthy initialDelaySeconds: 5 periodSeconds: 5

3 存活探針

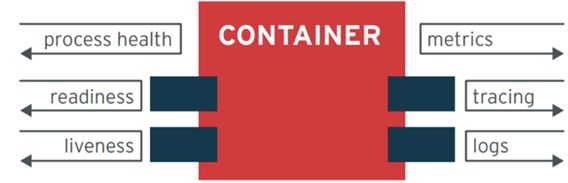

默認情況下: 以鏡像打包基于容器資源編排系統創建的pod對于用戶和服務就相當于一個黑盒。想要探測容器中的用戶部署的應用和服務是否正常,都被容器編排系統(k8s)所阻擋。正常情況下,任何一個為云原生開發的程序都會考慮到這個問題,為了監視容器中運行的“應用”正常各種指標應該向外輸出,比如,健康狀態,實現的方式,比如使用一個URL或者VirtualHost的單獨容器對外輸出健康狀態指標。暴露給容器邊界的外部。

Metrics:提供的指標數據,有業務級,系統級等 tracing: 分布式鏈路追蹤可能會使用 ,可以認為埋點或者叫做探針 探針就相當于一個接口,一個管道。后期直接使用即可,可以理解為URI或者端口探測 readiness: 就緒狀態檢測 liveness: 存活狀態檢測

Pod默認提供探針的接口: Liveness

下面非常重要:

判斷一個pod中容器運行健康狀態與否:有兩種探針,而且周期性運行 liveness和 readiness;

liveness: 如果容器沒有正常運行,或者沒有得到正確的值,kubelet會根據容器重啟策略,重啟或者殺死容器;

readiness: 判斷容器內的應用程序從啟動,到應用程序是否正常運行,能夠提供用戶正常訪問和接受客戶端請求,如果一個容器沒有通過就緒檢測,而容器可能會重啟它,service會把對應的主機ip從后端移除,直到下次健康檢測正常才把它加進來。

spec: containers: - name: … image: … livenessProbe: exec <Object> # 命令式探針 httpGet <Object> # http GET類型的探針 tcpSocket <Object> # tcp Socket類型的探針 initialDelaySeconds <integer> # 發起初次探測請求的延后時長 建議設置長一點,有些服務啟動很慢 periodSeconds <integer> # 請求周期 timeoutSeconds <integer> # 超時時長 successThreshold <integer> # 成功閾值 (表示探測n次成功,才表示容器是健康的,狀態改變之后的確認次數) failureThreshold <integer> # 失敗閾值 狀態改變之后,探測n此失敗才確認失敗

Pod默認提供的三種探針方式:

1 . LivenessProbe: 周期性探測, 檢測未通過時,kubelet會根據restartPolicy的定義來決定是否會重啟該容器;未定義時,Kubelet認為只容器未終止,即為健康;

以下是對存活探針方式的三種訪問參數,ReadinessProbe訪問方式一樣:

命令查看readinessProbe有哪些參數

[root@k8s-master-10 Liveness]# kubectl explain pods.spec.containers.readinessProbe KIND: Pod VERSION: v1 RESOURCE: readinessProbe <Object> DESCRIPTION: Periodic probe of container service readiness. Container will be removed from service endpoints if the probe fails. Cannot be updated. More info: https://kubernetes.io/docs/concepts/workloads/pods/pod-lifecycle#container-probes Probe describes a health check to be performed against a container to determine whether it is alive or ready to receive traffic. FIELDS: exec<Object> One and only one of the following should be specified. Exec specifies the action to take. failureThreshold<integer> Minimum consecutive failures for the probe to be considered failed after having succeeded. Defaults to 3. Minimum value is 1. httpGet<Object> HTTPGet specifies the http request to perform. initialDelaySeconds<integer> Number of seconds after the container has started before liveness probes are initiated. More info: https://kubernetes.io/docs/concepts/workloads/pods/pod-lifecycle#container-probes periodSeconds<integer> How often (in seconds) to perform the probe. Default to 10 seconds. Minimum value is 1. successThreshold<integer> Minimum consecutive successes for the probe to be considered successful after having failed. Defaults to 1. Must be 1 for liveness. Minimum value is 1. tcpSocket<Object> TCPSocket specifies an action involving a TCP port. TCP hooks not yet supported timeoutSeconds<integer> Number of seconds after which the probe times out. Defaults to 1 second. Minimum value is 1. More info: https://kubernetes.io/docs/concepts/workloads/pods/pod-lifecycle#container-probes

查看exec探測幫助:

[root@k8s-master-10 Liveness]# kubectl explain pods.spec.containers.readinessProbe.exec KIND: Pod VERSION: v1 RESOURCE: exec <Object> DESCRIPTION: One and only one of the following should be specified. Exec specifies the action to take. ExecAction describes a "run in container" action. FIELDS: command<[]string> Command is the command line to execute inside the container, the working directory for the command is root ('/') in the container's filesystem. The command is simply exec'd, it is not run inside a shell, so traditional shell instructions ('|', etc) won't work. To use a shell, you need to explicitly call out to that shell. Exit status of 0 is treated as live/healthy and non-zero is unhealthy.

查看http方式幫助:

[root@k8s-master-10 Liveness]# kubectl explain pods.spec.containers.readinessProbe.httpGet KIND: Pod VERSION: v1 RESOURCE: httpGet <Object> DESCRIPTION: HTTPGet specifies the http request to perform. HTTPGetAction describes an action based on HTTP Get requests. FIELDS: host<string> Host name to connect to, defaults to the pod IP. You probably want to set "Host" in httpHeaders instead. httpHeaders<[]Object> Custom headers to set in the request. HTTP allows repeated headers. path<string> Path to access on the HTTP server. port<string> -required- Name or number of the port to access on the container. Number must be in the range 1 to 65535. Name must be an IANA_SVC_NAME. scheme<string> Scheme to use for connecting to the host. Defaults to HTTP.

注意:

initialDelaySeconds 表示容器在啟動之后,如果不設置時間,可能就是馬上進行存活檢測,因為此時有些大應用可能還沒有啟動,就檢測失敗了,檢測失敗之后又自動重啟了,所以就處于重啟的循環當中。所以此處應當設置一個延時等待時間。等容器中應用都啟動好之后,再進行檢測。

ReadinessProbe:

周期性探測,檢測未通過時,與該Pod關聯的Service,會將Pod從Service的后端可用端點列表中刪除;直接再次就緒,重新添加回來。未定義時,只要容器未終止就是就緒;

StartProbe:

1.16版本之后支持,啟動狀態檢測,檢測容器剛剛啟動是成功的,只有他通過之后,查看是否有LivenessProbe,然后生效LivenessProbe,一般用于大型服務啟動時檢測;

以上的三種探針都支持以下三種類似的檢測方式:

下面三種檢測方法:

1 . ExecAction: 直接執行命令,命令成功返回探測成功;制作容器時候預留一個探測接口ip/api;

2 . TCPSocketAaction: 端口能夠正常打開,對于握手能夠正常相應,發起三次握手。握手相應,表示成功;

3 . HTTPGetAction: 向指定的Path發起HTTP請求,2xx,3xx表示響應碼成功;

3.1 基于存活探針使用命令測試

apiVersion: v1 kind: Pod metadata: name: liveness-exec-demo namespace: default spec: containers: - name: demo image: ikubernetes/demoapp:v1.0 imagePullPolicy: IfNotPresent livenessProbe: exec: command: ['/bin/sh', '-c', '[ "$(curl -s 127.0.0.1/livez)" == "OK" ]'] initialDelaySeconds: 5 timeoutSeconds: 1 periodSeconds: 5 #執行上面的demo,判斷執行的命令是否等于ok,如果等于ok,表示探測是成功的。 kubectl apply -f .

提交post請求,容器會自動重啟

[root@k8s-master1 ~]# curl 10.244.135.28/livez OK[root@k8s-master1 ~] curl -XPOST -d "livez=Faile" 10.244.135.28/livez3.3 使用tcp測試

example1

[root@k8s-master1 lianxi]# cat liveness-tcpsocket-demo.yaml apiVersion: v1 kind: Pod metadata: name: liveness-tcpsocket-demo namespace: default spec: containers: - name: demo image: ikubernetes/demoapp:v1.0 imagePullPolicy: IfNotPresent ports: - name: http containerPort: 80 securityContext: capabilities: add: - NET_ADMIN #方便后續添加iptables測試 livenessProbe: tcpSocket: port: http periodSeconds: 5 initialDelaySeconds: 5 [root@k8s-master-10 Liveness]# kubectl exec liveness-tcpsocket-demo -- iptables -A INPUT -p tcp --dport 80 -j REJECT # 容器立馬探測失敗,5s之后就會重啟 [root@k8s-master-10 ~]# kubectl get pods -w NAME READY STATUS RESTARTS AGE liveness-tcpsocket-demo 1/1 Running 0 4h23m liveness-tcpsocket-demo 1/1 Running 1 4h24m

example2

[root@k8s-master-10 Liveness]# cat nginx-tcp-liveness.yaml apiVersion: v1 kind: Pod metadata: name: nginx-tcp-liveness-probe spec: containers: - name: nginx-tcp-liveness-probe image: nginx:latest ports: - name: http-80-port protocol: TCP containerPort: 80 livenessProbe: tcpSocket: port: 80 initialDelaySeconds: 3 periodSeconds: 10 timeoutSeconds: 3 [root@k8s-master-10 Liveness]# kubectl apply -f nginx-tcp-liveness.yaml pod/nginx-tcp-liveness-probe created [root@k8s-master-10 Liveness]# kubectl get pods -o wide |grep nginx nginx-tcp-liveness-probe 1/1 Running 0 2m5s 172.17.66.5 192.168.0.14 <none> <none> # 模擬故障,進入Pod安裝htop [root@k8s-master-10 Liveness]# kubectl exec -it nginx-tcp-liveness-probe bash root@nginx-tcp-liveness-probe:/# apt-get update root@nginx-tcp-liveness-probe:/# apt-get install htop root@nginx-tcp-liveness-probe:/# htop CPU[|| 5.4%] Tasks: 4, 0 thr; 1 running Mem[|||||||||||||| 792M/5.61G] Load average: 0.02 0.06 0.05 Swp[ 0K/0K] Uptime: 2 days, 22:17:44 PID USER PRI NI VIRT RES SHR S CPU% MEM% TIME+ Command 1 root 20 0 10652 3344 2532 S 0.0 0.1 0:00.00 nginx: master process 30 nginx 20 0 11056 1764 460 S 0.0 0.0 0:00.00 nginx: worker process 31 root 20 0 3976 2072 1576 S 0.0 0.0 0:00.00 bash 311 root 20 0 4780 1676 1240 R 0.0 0.0 0:00.00 htop 運行htop查看進程,容器進程通常為1; root@nginx-tcp-liveness-probe:/# kill 1 root@nginx-tcp-liveness-probe:/# command terminated with exit code 137 [root@k8s-master-10 Liveness]# kubectl get pods -w |grep nginx nginx-tcp-liveness-probe 1/1 Running 0 4m47s nginx-tcp-liveness-probe 0/1 Completed 0 4m51s nginx-tcp-liveness-probe 1/1 Running 1 5m7s [root@k8s-master-10 Liveness]# kubectl describe pod nginx-tcp-liveness-probe |tail node.kubernetes.io/unreachable:NoExecute for 300s Events: Type Reason Age From Message ---- ------ ---- ---- ------- Normal Scheduled 5m39s default-scheduler Successfully assigned default/nginx-tcp-liveness-probe to 192.168.0.14 Normal Pulling 48s (x2 over 5m39s) kubelet, 192.168.0.14 Pulling image "nginx:latest" Warning Unhealthy 48s kubelet, 192.168.0.14 Liveness probe failed: dial tcp 172.17.66.5:80: connect: connection refused Normal Pulled 33s (x2 over 5m23s) kubelet, 192.168.0.14 Successfully pulled image "nginx:latest" Normal Created 33s (x2 over 5m23s) kubelet, 192.168.0.14 Created container nginx-tcp-liveness-probe Normal Started 33s (x2 over 5m23s) kubelet, 192.168.0.14 Started container nginx-tcp-liveness-probe3.4 通過http進行探測

只看響應碼,如果是2xx,3xx表示正常,如果是4xx,5xx就是表示失敗

[root@k8s-master1 lianxi]# cat liveness-httpget-demo.yaml apiVersion: v1 kind: Pod metadata: name: liveness-httpget-demo namespace: default spec: containers: - name: demo image: ikubernetes/demoapp:v1.0 imagePullPolicy: IfNotPresent livenessProbe: httpGet: path: '/livez' port: 80 scheme: HTTP initialDelaySeconds: 5 [root@k8s-master-10 Liveness]# curl 172.17.66.2/livez OK

4 就緒探針

就緒檢查用于應用接入到service的場景,用于判斷應用是否已經就緒完畢,即是否可以接受外部轉發的流量,健康檢查正常則將pod加入到service的endpoints中,健康檢查異常則從service的endpoints中刪除,避免影響業務的訪問。

下面是容器啟動之后通過15s之后進行就緒緒檢測,在15s之前不會將訪問容器的流量調度到后端的service ip,導致訪問失敗。通過檢測之后才將service 添加到k8s后端的service ip中;

Example1

[root@k8s-master1 lianxi]# cat readiness-httpget-demo.yaml apiVersion: v1 kind: Pod metadata: name: readiness-httpget-demo namespace: default spec: containers: - name: demo image: ikubernetes/demoapp:v1.0 imagePullPolicy: IfNotPresent readinessProbe: httpGet: path: '/readyz' port: 80 scheme: HTTP initialDelaySeconds: 15 timeoutSeconds: 2 periodSeconds: 5 failureThreshold: 3 restartPolicy: Always

Example2

創建一個Pod,使用httpGet的健康檢查機制,定義readiness就緒檢查探針檢查路徑/test.html

[root@k8s-master-10 Liveness]# cat httpget-liveness-readiness-probe.yaml apiVersion: apps/v1 kind: Deployment metadata: name: nginx-tcp-liveness-probe labels: app: nginx-server spec: replicas: 1 selector: matchLabels: app: nginx-server template: metadata: labels: app: nginx-server spec: containers: - name: nginx-tcp-liveness-probe image: nginx:latest imagePullPolicy: IfNotPresent ports: - containerPort: 80 livenessProbe: #存活檢查探針 httpGet: port: 80 path: /index.html scheme: HTTP initialDelaySeconds: 3 # 容器啟動等待多少秒后存活和就緒探測器才會被初始化,默認0; periodSeconds: 10 # 執行探測的時間間隔,默認10,最小1 successThreshold: 1 # 探測器失敗后,被視為最小成功連續數,默認值為1,存活和啟動探測這個值必須是1; timeoutSeconds: 3 # 探測超時等待多少秒,默認1; failureThreshold: 3 # 探測失敗,k8s的重試次數,存活探測情況下的放棄意味著重啟容器, 就緒探測情況>下放棄Pod會被打上未就緒標簽,默認3; readinessProbe: #就緒檢查探針 httpGet: port: 80 path: /test.html scheme: HTTP initialDelaySeconds: 3 periodSeconds: 10 timeoutSeconds: 3 [root@k8s-master-10 Liveness]# cat nginx-service.yaml apiVersion: v1 kind: Service metadata: labels: app: nginx name: nginx-service spec: ports: - name: http port: 80 protocol: TCP targetPort: 80 selector: app: nginx-server type: ClusterIP # 我們可以看到就緒探針檢測不通過 [root@k8s-master-10 Liveness]# kubectl describe pod nginx-tcp-liveness-probe-57bb9c7668-qcssq |tail Tolerations: node.kubernetes.io/not-ready:NoExecute for 300s node.kubernetes.io/unreachable:NoExecute for 300s Events: Type Reason Age From Message ---- ------ ---- ---- ------- Normal Scheduled 101s default-scheduler Successfully assigned default/nginx-tcp-liveness-probe-57bb9c7668-qcssq to 192.168.0.14 Normal Pulled 101s kubelet, 192.168.0.14 Container image "nginx:latest" already present on machine Normal Created 101s kubelet, 192.168.0.14 Created container nginx-tcp-liveness-probe Normal Started 101s kubelet, 192.168.0.14 Started container nginx-tcp-liveness-probe Warning Unhealthy 6s (x10 over 96s) kubelet, 192.168.0.14 Readiness probe failed: HTTP probe failed with statuscode: 404 # 查看service的endpoints,發現此時endpoints為空, 因為readiness就緒檢測異常,kubelet認為此時pod并未就緒,因此并未將其加入到endpoints中 [root@k8s-master-10 Liveness]# kubectl get svc NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE kubernetes ClusterIP 10.0.0.1 <none> 443/TCP 28d nginx-service ClusterIP 10.0.0.69 <none> 80/TCP 4m32s [root@k8s-master-10 Liveness]# kubectl describe svc nginx-service Name: nginx-service Namespace: default Labels: app=nginx Annotations: kubectl.kubernetes.io/last-applied-configuration: {"apiVersion":"v1","kind":"Service","metadata":{"annotations":{},"labels":{"app":"nginx"},"name":"nginx-service","namespace":"default"},"s... Selector: app=nginx-server Type: ClusterIP IP: 10.0.0.69 Port: http 80/TCP TargetPort: 80/TCP Endpoints: Session Affinity: None Events: <none> # 進入到pod中手動創建網站文件,使readiness健康檢查正常 [root@k8s-master-10 ~]# kubectl exec -it nginx-tcp-liveness-probe-57bb9c7668-qcssq bash root@nginx-tcp-liveness-probe-57bb9c7668-qcssq:/# echo "readiness probe demo" > /usr/share/nginx/html/test.html [root@k8s-master-10 Liveness]# kubectl describe svc nginx-service Name: nginx-service Namespace: default Labels: app=nginx Annotations: kubectl.kubernetes.io/last-applied-configuration: {"apiVersion":"v1","kind":"Service","metadata":{"annotations":{},"labels":{"app":"nginx"},"name":"nginx-service","namespace":"default"},"s... Selector: app=nginx-server Type: ClusterIP IP: 10.0.0.69 Port: http 80/TCP TargetPort: 80/TCP Endpoints: 172.17.66.2:80 Session Affinity: None Events: <none> [root@k8s-master-10 Liveness]# kubectl describe endpoints nginx-service Name: nginx-service Namespace: default Labels: app=nginx Annotations: endpoints.kubernetes.io/last-change-trigger-time: 2021-09-11T22:25:15+08:00 Subsets: Addresses: 172.17.66.2 NotReadyAddresses: <none> Ports: Name Port Protocol ---- ---- -------- http 80 TCP Events: <none>

5 Pod中容器使用的兩種鉤子介紹

對容器主要做一些初始化的操作

post start hook: 容器啟動初始化 啟動后的鉤子 pre stop hook: 容器結束之前執行的操作

[root@k8s-master1 lianxi]# cat lifecycle-demo.yaml apiVersion: v1 kind: Pod metadata: name: lifecycle-demo namespace: default spec: containers: - name: demo image: ikubernetes/demoapp:v1.0 imagePullPolicy: IfNotPresent securityContext: capabilities: add: - NET_ADMIN livenessProbe: httpGet: path: '/livez' port: 80 scheme: HTTP initialDelaySeconds: 5 lifecycle: postStart: #啟動前執行的鉤子 exec: command: ['/bin/sh','-c','iptables -t nat -A PREROUTING -p tcp --dport 8080 -j REDIRECT --to-ports 80'] preStop: #容器結束前執行的鉤子 exec: command: ['/bin/sh','-c','while killall python3; do sleep 1; done'] restartPolicy: Always

在容器啟動的時候自動執行添加規則,容器結束的執行會執行上面的殺死python命令

[root@k8s-master-10 Liveness]# kubectl exec lifecycle-demo -- iptables -vnL -t nat Chain PREROUTING (policy ACCEPT 6 packets, 360 bytes) pkts bytes target prot opt in out source destination 0 0 REDIRECT tcp -- * * 0.0.0.0/0 0.0.0.0/0 tcp dpt:8080 redir ports 80 Chain INPUT (policy ACCEPT 6 packets, 360 bytes) pkts bytes target prot opt in out source destination Chain OUTPUT (policy ACCEPT 0 packets, 0 bytes) pkts bytes target prot opt in out source destination Chain POSTROUTING (policy ACCEPT 0 packets, 0 bytes) pkts bytes target prot opt in out source destination 5.1 鉤子三種實行方法

鉤子也是支持三種實行的方法: 對于postStart和preStart 都是一樣的

[root@k8s-master-10 Liveness]# kubectl explain pods.spec.containers.lifecycle.postStart KIND: Pod VERSION: v1 RESOURCE: postStart <Object> DESCRIPTION: PostStart is called immediately after a container is created. If the handler fails, the container is terminated and restarted according to its restart policy. Other management of the container blocks until the hook completes. More info: https://kubernetes.io/docs/concepts/containers/container-lifecycle-hooks/#container-hooks Handler defines a specific action that should be taken FIELDS: exec<Object> One and only one of the following should be specified. Exec specifies the action to take. httpGet<Object> HTTPGet specifies the http request to perform. tcpSocket<Object> TCPSocket specifies an action involving a TCP port. TCP hooks not yet supported

6 Pod中多容器模式運行

Sidecar:為了讓外部的請求更好的接入Pod中容器而設計的(主要是代理);

Adapater: 主要是讓容器請求更好的適配外部的請求而設計;

Ambassador: 主要為了讓Pod中容器請求更好接入外部的環境設計;

(訪問數據庫,容器把數據給base容器,由base容器訪問數據庫)

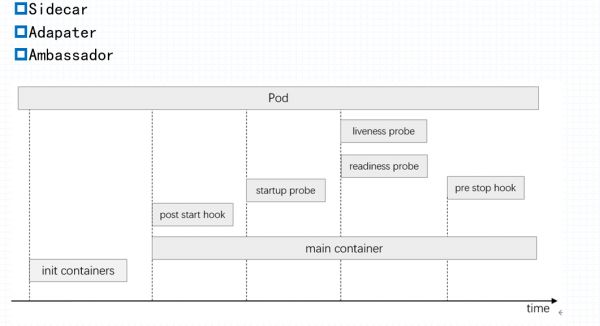

加入定義兩個初始化容器: Pod生命周期

容器初始化1 ---> 成功完成 ----> 第二個初始化容器2 ---> 成功完成 ---> 主容器(如果定義了sidecar可能和主容器一起啟動)

說明:

一般在容器中使用初始化容器做特權操作,而不是直接定義特權字段,初始化容器執行完之后就會終止了, 比如添加iptables規則, 可以通過初始化容器來實現, 添加完iptables之后自動終止,然后運行主容器,而主容器沒有net-admin權限;

Example

[root@k8s-master-10 Liveness]# cat sidecar-container-demo.yaml apiVersion: v1 kind: Pod metadata: name: sidecar-container-demo namespace: default spec: containers: - name: proxy image: envoyproxy/envoy-alpine:v1.14.1 command: ['/bin/sh','-c'] args: ['sleep 5 && envoy -c /etc/envoy/envoy.yaml'] lifecycle: postStart: exec: command: ['/bin/sh','-c','wget -O /etc/envoy/envoy.yaml http://ilinux.io/envoy.yaml'] - name: demo image: ikubernetes/demoapp:v1.0 imagePullPolicy: IfNotPresent env: - name: HOST value: "127.0.0.1" - name: PORT value: "8080"

通過envoys代理訪問內部demo,demo只是監聽在127.0.0.1的8080端口

[root@k8s-master-10 Liveness]# kubectl get pods -o wide NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES lifecycle-demo 1/1 Running 0 21m 172.17.66.3 192.168.0.14 <none> <none> liveness-httpget-demo 1/1 Running 0 48m 172.17.66.2 192.168.0.14 <none> <none> sidecar-container-demo 2/2 Running 0 2m1s 172.17.66.4 192.168.0.14 <none> <none> [root@k8s-master-10 Liveness]# curl 172.17.66.4 iKubernetes demoapp v1.0 !! ClientIP: 127.0.0.1, ServerName: sidecar-container-demo, ServerIP: 172.17.66.4!

我們看看具體envoy的定義

[root@k8s-master-10 Liveness]# cat /etc/envoy/envoy.yaml admin: access_log_path: /tmp/admin_access.log address: socket_address: { address: 0.0.0.0, port_value: 9901 } static_resources: listeners: - name: listener_0 address: socket_address: { address: 0.0.0.0, port_value: 80 } filter_chains: - filters: - name: envoy.http_connection_manager config: stat_prefix: ingress_http codec_type: AUTO route_config: name: local_route virtual_hosts: - name: local_service domains: ["*"] routes: - match: { prefix: "/" } route: { cluster: local_service } http_filters: - name: envoy.router clusters: - name: local_service connect_timeout: 0.25s type: STATIC lb_policy: ROUND_ROBIN load_assignment: cluster_name: local_service endpoints: - lb_endpoints: - endpoint: address: socket_address: address: 127.0.0.1 port_value: 8080

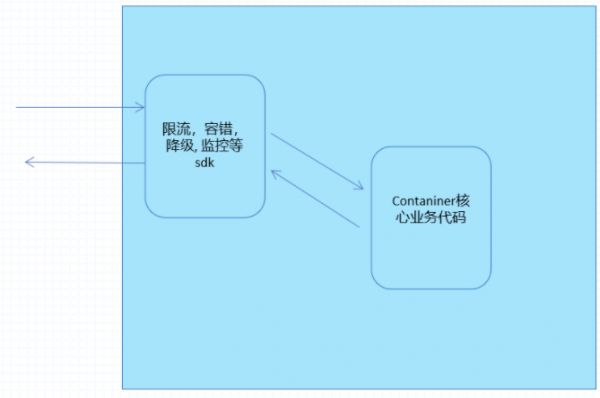

上面這張圖也是服務網格的一種思想,將限流,容錯,降級, 監控等調用sdk的服務放在一個應用中實現,把核心業務放在另一個應用程序中;
